Shockwaves: Typed waveforms for Clash

Typed waveforms with Shockwaves🔗️

For years, debugging Clash designs in a waveform viewer has been a massive pain. After all, the waveform viewers we have were not designed with Clash in mind, and glady present us with unintelligible binary values. But those times are now over! I’ve spent the last months working on Shockwaves, a system that lets you show typed waveforms in Surfer, and after many, many changes, tests, bug fixes and rewrites, we have finally reached the point of an official release!

What do we even want to show?🔗️

Haskell, and thus Clash, heavily relies on the notion of algebraic data types. These consist of sum and product types.

In Haskell terms, these are the equivalents of a data type having multiple constructors, and those constructors having fields respectively.

For example, a tuple is probably the most basic form of a product type. (Bool,Int) is a type for which each value contrains both a Bool and an Int value. Bool itself is a sum type: it has the two constructors True and False, and a value is either True or False. If we look at Maybe a (rustaceans will know this as Option<a>), it is both: Maybe is either Nothing, or Just, and Just contains a field of type a.

In the waveform viewer, we want to be able to take our algebraic values and translate them to their textual Haskell representation, but we also want to deconstruct these values into their parts recursively, so we can add them as subsignals.

For example, if we have a type data Point = Point{x::Int, y::Int}, we’d like the signal for our Point type to have subsignals for the x and y values. Similarly, if we have a type that has multiple constructors, we want subsignals for each, so we can look at their values.

A short introduction to Shockwaves🔗️

Clash designs can be simulated to create VCD files, but in doing so, all type information is lost. The VCD files that get generated simply contain the signal values in binary form. Shockwaves tells the waveform viewer how these binary values can be displayed as proper Haskell values again.

The Shockwaves system consists of two parts that work together to reconstruct this type information inside the waveform viewer:

• The Clash.Shockwaves Haskell library, which exports translation information in addition to the standard VCD file.
• The Shockwaves extension for Surfer, which uses this information to translate the values inside the VCD file back into the Haskell representation.

Shockwaves uses a collection of highly configurable translator modules to build up the best representations of Haskell types. And, if no good representation is available, it can also just store the translations in lookup tables! Add some flexible styles and configuration options, and you’ve got yourself a very powerful debugging tool.

Using Shockwaves🔗️

Using Shockwaves is quite simple. When the Surfer extension is installed, all you need to do is give your types an instance of the Waveform class, which defines how the type should be translated, and then simulating your design using Shockwaves’ Trace library.

Adding Waveform instances is easy - they can just be derived!

import Clash.Prelude
import GHC.Generics
import Data.Typeable
import Clash.Shockwaves

data MyColor = Red | Green | Blue
  deriving (BitPack,Generic,Typeable,NFDataX,Waveform)

The tracing functions are designed to be a drop-in replacement for Clash’s Signal.Trace. The most important change is that Shockwaves’ dumpVCD produces two files: the original VCD file, as well as a JSON file containing translator information. All you need to do is store this file under the same base name:

import qualified Clash.Shockwaves.Trace as T

main :: IO ()
main = do
  let signal = T.traceSignal @System "color"
        $ fromList $ L.cycle [undefined, Red, Green, Blue]
  vcd <- T.dumpVCD (0, 100) signal ["color"]
  case vcd of
    Left msg ->
      error msg
    Right (vcd, meta) -> do
      writeFile     "waveform.vcd"  $ Text.unpack vcd
      writeFileJSON "waveform.json" meta

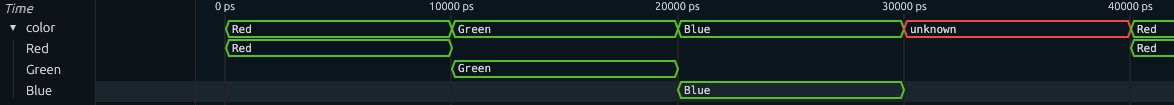

If you now open waveform.vcd in Surfer, the Shockwaves extension will detect the JSON file and automatically start translating the data! The result should look like this:

Adding a splash of color🔗️

Surfer is not limited to just showing Haskell values as text; it also has a handy style system. As you’ve already seen above, undefined values show up in red, but there’s so much more you can do! Shockwaves supports Surfer’s builtin styles, but also allows you to create colors of your own, and even add style variables that let you change the colors of values post-simulation via configuration files.

For example, it is very easy to change the colors of your constructors by adding a slightly customized Waveform instance, instead of deriving it:

instance Waveform MyColor where
  styles = [WSWarn, "green", "#08f"]

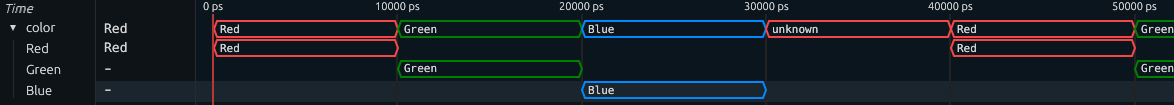

If we run our code again, we now see that our signals have taken on color!

Let’s have a quick look at the style variables too! Let’s change our styles like this:

instance Waveform MyColor where
  styles = ["$red", "$green", "$blue"]

If we run our simulation again, the colors have disappeared, and Surfer is reporting a bunch of warnings about style variables not being found.

But now we add a file called shockwaves.toml in the same directory as our VCD file, containing the following:

[style]
red = "#f33"
green = "#3f3"
blue = "#08f"

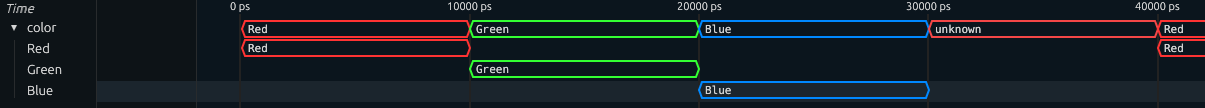

If we then reload Surfer (press r), we can suddenly see our colors show up! We can also use these style variiables to, for example, give True and False different styles.

Going beyond the basics🔗️

Shockwaves was designed to be highly configurable and modular. For each Haskell type, it defines a Translator that determines how the binary value of a signal is turned into a waveform viewer translation - a textual representation, style, and any number of (nested) translations of subsignals. In a way, they represent a combination of unpack and show, applied recursively.

The translators are fairly granular and have almost no hardcoded limitations on how values are displayed. Most translators are composed of other translators. This lets you represent your type in virtually any form you want though custom Waveform instances.

And if the standard modules do not work for you, there’s always the option to switch to using lookup tables. While these are a little less performant, they give you absolutely full control from within Haskell! You can do things like:

• creating colors on the fly

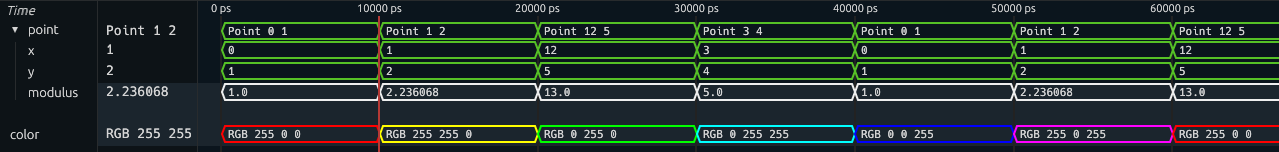

• adding debug signals that are computed from the original values (for example, you could display the modulus of a geometric vector type)
• show your custom floating point numbers
• and much, much more!

And on top of all that, the Surfer extension has extensive configuration options that let you:

• override number formatting styles
• create style configurations and themes
• override default styles of some builtin types like Either and Maybe
• turn on and off error propagation
• and set all these globally or locally!

Want to try for yourself?🔗️

You can find the clash-shockwaves repository here. Shockwaves has been documented in a collection of HOWTO guides. To get started with Shockwaves yourself, have a look at the HOWTOs on setting up Shockwaves and getting started.

If you have any feedback, we’d love to hear it!

Closing words🔗️

I’ve been working on Shockwaves for a long time now, and I’m proud to finally show what I’ve created. I hope this will make debugging a lot easier. For future versions, we are working on improving Clash simulation as a whole, and integrating Shockwaves with Clash-ILA.
